UTquad

radiant panels icon

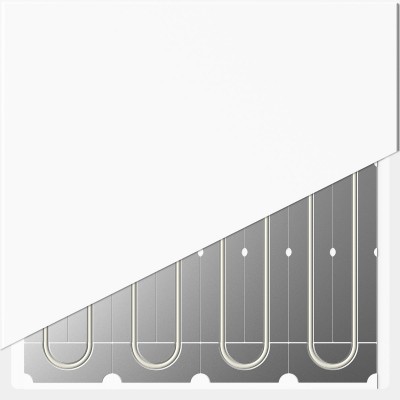

Removable prefabricated radiant panel, dim. 60×60 cm, with two snap-in 90° fittings.

UTquad is available in different finishing solutions, both smooth and sound absorbing, with visible edges or edges hidden in the structure (E15, A and D2). The panels are simply laid on the support frame, ensuring an easy

accessibility for controls and inspections. If necessary they can be easily removed or moved sideways, keeping steady the hydraulic connections.

prefabricated radiant panel UTquad - pannello radiante prefabbricato UTquad

technical specifications

  • thermal insulation support in pre-moulded expanded polystyrene, class 200 density, 35 mm thick, shaped to fit in the aluminium heat exchangers;

  • pre-moulded aluminium heat exchangers 400 μm thickness, shaped to fit in the hydraulic circuit;

  • hydraulic circuit with triple layer pipe in PE-Xc ∅ 8×1 mm with intermediate oxygen barrier and snap in fittings;

  • gypsum finishing plasterboard, 10 mm thick Gyptone Base 31, made by a smooth satin finish covered plaster, with Activ’Air® technolgy, that reduces up to 70% of the formaldehyde in the air inside the closed enviroments;

  • available with visible edges or edges hidden in the structure
    (E15, A e D2).

solutions

UTquad radiant panel was created to meet the needs of inspection of the false ceilings in public spaces. Designed and built using the components and the high thermal performances of UTstandard panel, it is the ideal solution for environments that need to be characterized by high thermal and acoustic comfort:

  • hospitals
  • offices
  • schools
  • conference rooms
  • commercials
  • restaurants
  • open spaces

technical specifications

UTquad

features

radiant net area (EN 14240)

0.34 sqm

radiant gross area (panel total surface)

0.36 sqm

net radiant percentage

94 %

water content

0.15 l

board thermal conductivity

0.21 W/mK

types of edges

E15, A, D2

dimensions
and weight

note 1

dimensions (W x H x D)
600 x 600 x 46 (edge E15, A)
600 x 600 x 48,5 (edge D2)

weight
3,61 kg (edge E15)
3,47 kg (edge A)
4,15 kg (edge D2)

utquad-dimensions-en

complementary panels

UTquad neutral: blank panel for not radiant surfaces to be combined with UTquad radiant panels
(dimensions 600 x 600 x 46 ÷ 48,5 mm)

UTquad board: board for not radiant surfaces to be combined with UTquad radiant panels
(dimensions 600 x 600 x 10 ÷ 12,5 mm)

available additional finishes

UTfono P11

UTfono P12


UTfono BQ41

UTfono Q20

UTfono BQ42

UTfono Q22

UTfono BS60

UTfono S60

UTfono BL6

UTfono L4

notes

  1. All the indicated dimensions have a tolerance of ± 1 mm.
